MANUFACTURE OF COMPONENTS FOR GENERATORS AND ELECTRIC MOTORS: STATOR, ROTOR AND POLE PACKED CORES

Donako manufactures stator, rotor and pole core packed cores for winding-ready electric generators in the hydro, wind and nuclear power sectors, as well as electric motors of the following types:

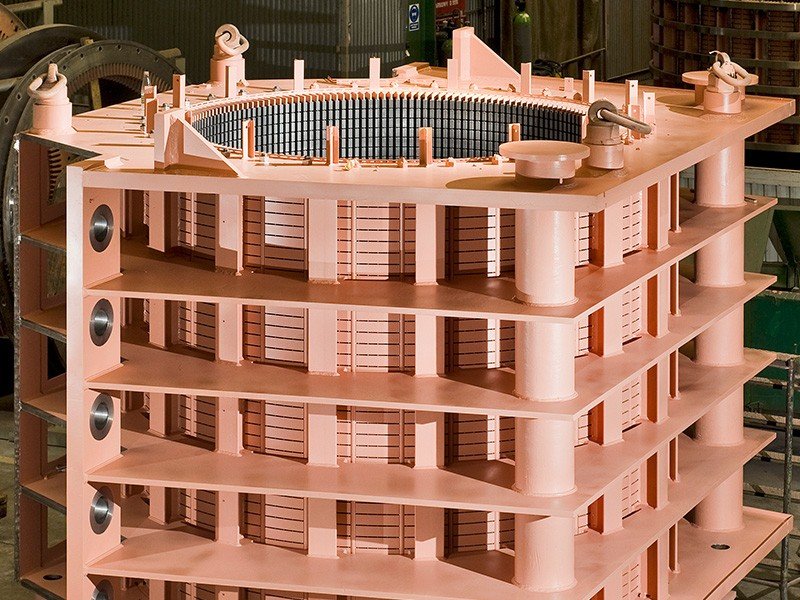

Housed stator pack:

• split and unsplit,
• with welded and screwed lugs,
• with straight and angled core grooves,
• with walls or pressure segments,
• pack housed via baking.

Slip-on type stator pack with transversed outer diameters of intermediate and lock rings for subsequent insertion into the frame housing.

Rotor pack

• with pressure rings or segments,
• with or without hub and hub for shaft,
• hub assembly in baked pack,
• shaft mounting in rotor pack without hub.

Dimensions and tonnage of electrical machinery components:

• Inner diameter of stator cores approx. (0.7 – 4 m),
• Outer diameter of rotors approx. (0.5 – 3m),
• Due to crane lifting capacity including machine rotation up to 50 tonnes.

Machinery:

3 furnaces

3 welding units

2 column presses for packs.

Technical capabilities:

• manufacture of stator, rotor and pole packs by welding, bolting, clamping or baking
• maximum weight of the pack with packing device: 5T
• maximum temperature of circulating air reached in furnaces: 200℃
• pressing of sheet metal batches with maximum pressure: 100T
• MIG/MAG welding of batches under high press pressure
• baking of sheet metal batches in specially prepared devices
• maximum external dimensions of the furnace: 5 x 3.7 x 4.1 m
